M90填補了M40和ARRIMAX 18/12之間的空白,其性能正好位于兩者之間。它的對焦范圍從15°到49°,只需旋轉對焦旋鈕。它可帶來非常均勻地光場和清晰地陰影。
消除分布透鏡的設計加快了現場的工作流程。
9000W的燈泡尺寸非常接近6000W的燈泡,這讓MAX技術反光碗可以完美適配兩種燈泡。一流的外殼和散熱設計帶來了緊湊的尺寸,幾乎接近于ARRISUN 60。
與最新的電子高速鎮流器EB 6/9 HS (帶自動掃描)搭配的組合代表了最先進的日光光源系統,可以支持高幀率的拍攝,帶來高質量的影像。所有EB 6/9 kW鎮流器都配備了線纜功率補償功能(CCL),可以保證即便是較長的電纜也可以將全部功率傳輸?shù)綗襞荨_@意味著高亮度輸出與電纜再無關聯。由于EB 6/9 kW鎮流器使用了EB 6000 Baby的外殼,6 kW燈頭到鎮流器的電纜可兼容使用,整套系統可高效地帶來接近傳統12 kW鏑燈(帶透鏡)的亮度輸出,而尺寸僅有 6kW鏑燈系統大小 - 重量上就贏了!

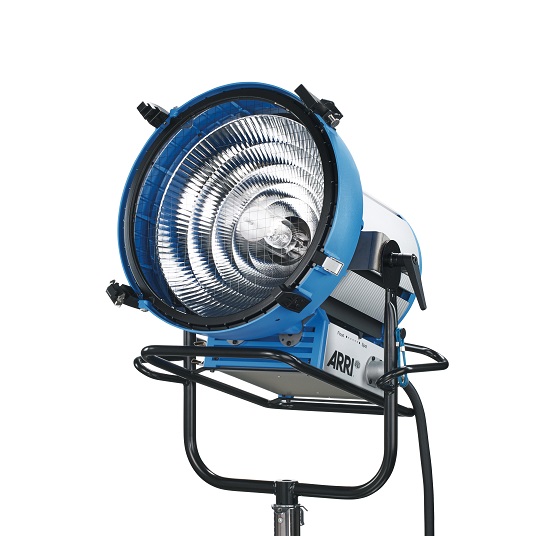

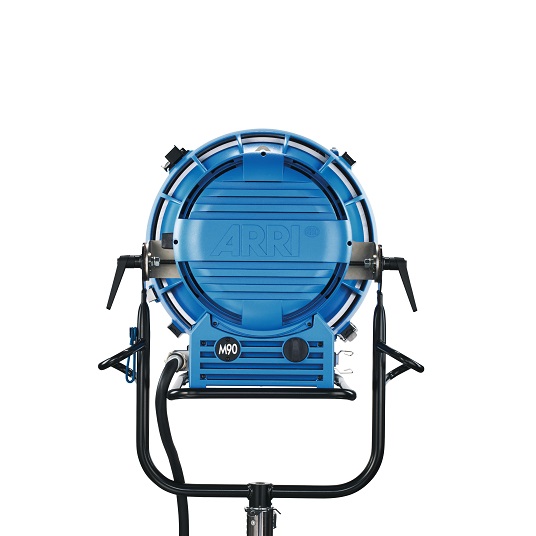

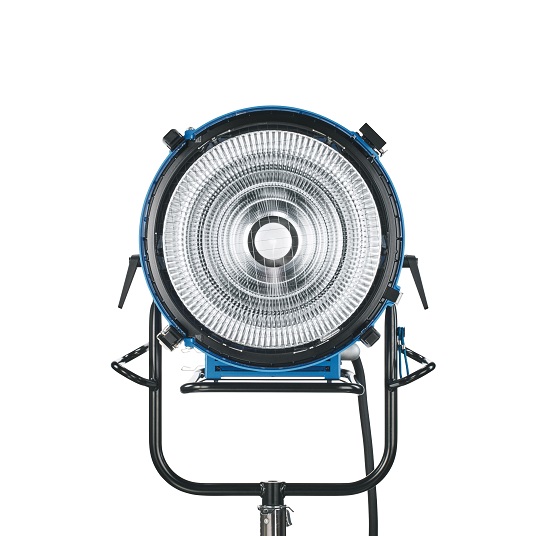

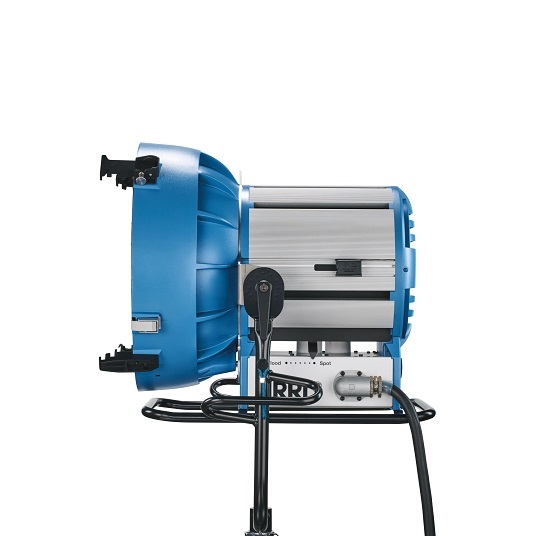

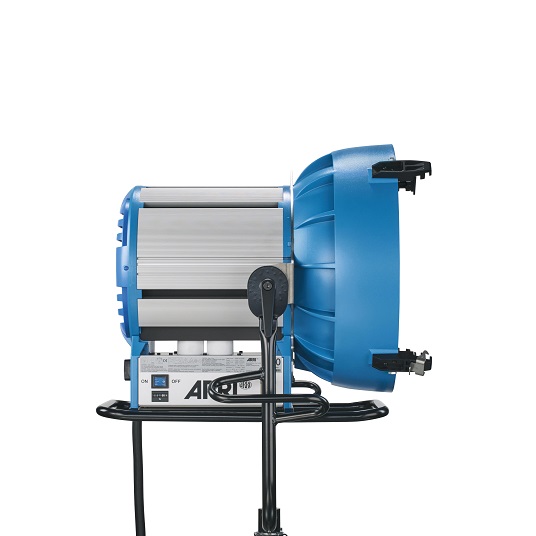

M90 fills the gap between M40 and arrimax 18 / 12, and its performance is just in between. Its focusing range is from 15 ° to 49 °, just rotate the focusing knob. It can bring a very uniform light field and clear shadows.
The design of eliminating distributed lens speeds up the work flow on site.
The 9000W bulb size is very close to the 6000W bulb, which makes the max technology reflective bowl perfect for both bulbs. The state-of-the-art housing and heat dissipation design bring a compact size, almost close to arrisun 60.
The combination with the latest electronic high-speed ballast EB 6 / 9 HS (with automatic scanning) represents the most advanced daylight source system, which can support high frame rate shooting and bring high-quality images. All EB 6 / 9 kW ballasts are equipped with cable power compensation (CCL), which can ensure that even a long cable can transmit all power to the bulb. This means that the high brightness output is no longer associated with the cable. Because the EB 6 / 9 kW ballast uses the shell of EB 6000 baby, the cable from the 6 kW lamp cap to the ballast can be used compatible. The whole system can efficiently approach the brightness output of the traditional 12 kW dysprosium lamp (with lens), and the size is only 6kW dysprosium lamp. The system wins in size and weight!
